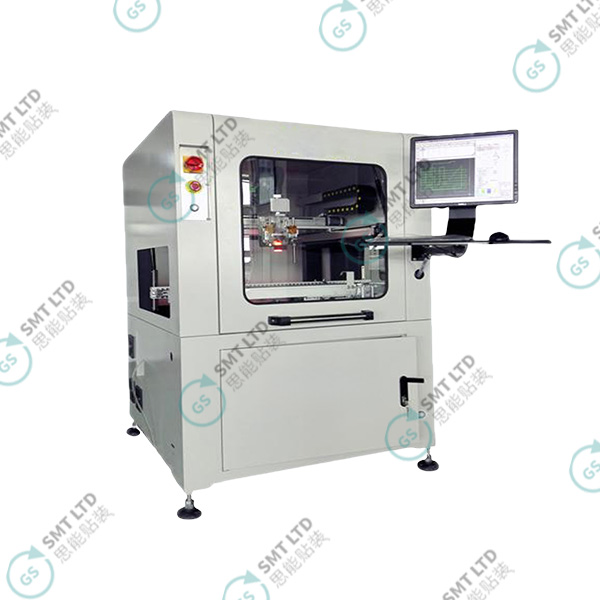

PCB conformal coating machine:
PCB Conformal coating machine is used to paint conformal coating onto PCB to avoid PCB moisture,sault and static.It can be full panel coating or selective coating.
Technical specification:
| Model | JW-830 |
| Dimension | 1100*1300*1700mm |
| Platform material | T20 mm steel plate chrome plated |
| Control method | Industrial + board |
| Operation | PC |
| Programming | manual |
| Program storage | 1000+ |
| PCB transmission height | 920±20mm |
| Transmission speed | 0-5000mm/min |
| Direction | L to R; R to L |
| Motor | 2 sets of stepping motor |
| PCB width | 50~450mm |
| Driving method adjust | Stepping motor+screw drive |
| X.Y axis driving | Fuji servo motor+screw module drive |
| X.Y.Z max. speed | 800mm/s |
| X.Y axis precision | 0.01mm |
| Z axis driving method | Fuji servo motor+screw module drive |
| Z axis precision | 0.01mm |
| Valve type | 1 conical atomizing valve, 1 needle dispensing valve |
| PCB components height | Max.70mm |
| Drum capacity | A 10L stainless steel inner barrel with
stirring function pressure barrel + A small cleaning pressure barrel with stainless steel pressure tank for cleaning |
| Cleaning function | With automatic cleaning function |
| Lighting | With lighting function |
| Inspection | UV inspection light available |
| Power supply | AC220V |
| Total consumption | 1.8KW |
| Less glue alarm function | Optional |
Product Features:
1.X, Y, Z, and three-axis movements enable accurate selective spraying of various PCB boards away from uncoated areas such as connectors.
2.Accurately achieve a variety of circuit board selective area spraying.
3.It can realize multi-track spraying such as spot coating, line spraying and curve spraying, and can complete the spraying process of high-density and complex circuit boards.
4.It can effectively and evenly coat the edge of the device, eliminating the shadowing effect of spraying.
5.The system accuracy is ±0.01 mm.
6.With high speed, high reliability, high stability of the drive and control system.
7.There are three types of precision nozzles available for customers to choose from. The standard equipment also carries two nozzles. This two nozzles can realize automatic switching and cooperation of spraying operations, and can achieve high-density and complex circuit board spraying and dispensing processes.
8.The device is equipped with intelligent automatic widening and narrowing functions (the width of the input board can be adjusted automatically).
9.Programming mode: software program with data input automatic programming; handle manually enter any track automatic programming mode

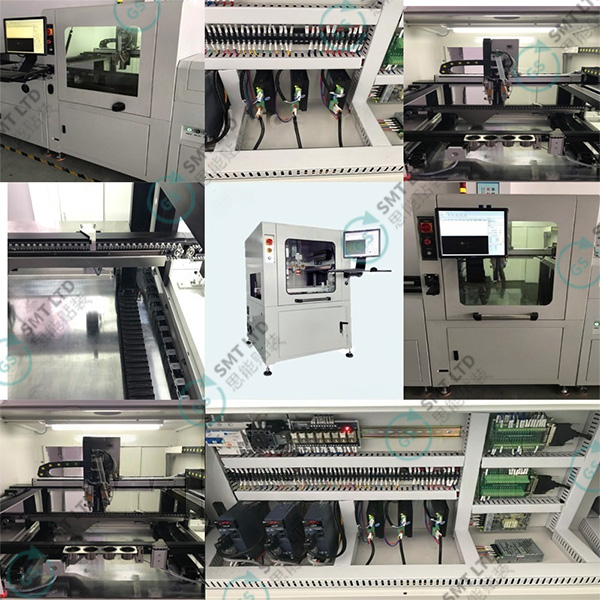

Pictures:

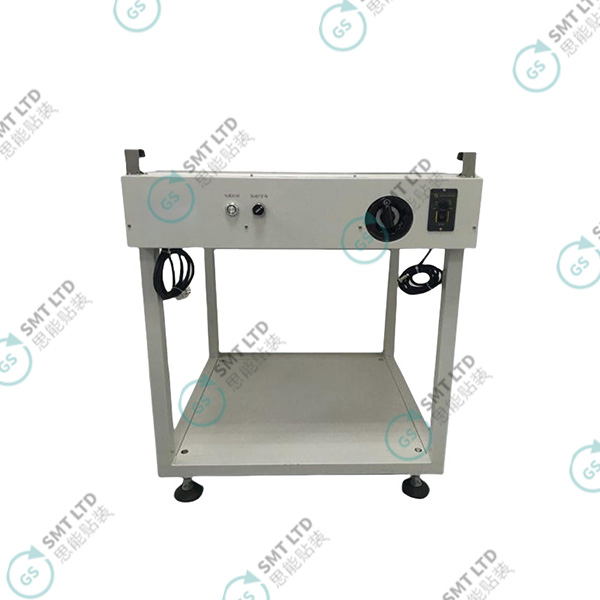

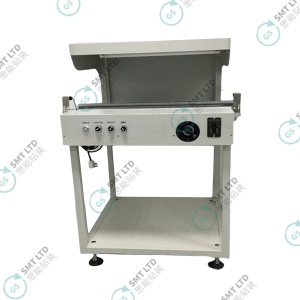

Details:
