JW-HC680 PCB Vertical buffer with LIFO/FIFO

JW-HC680 PCB Vertical buffer with LIFO/FIFO

The vertical buffer allows PCB’s in LIFO or FIFO mode.

Capacity:5 pcs or 20pcs for option

Selectable pitch settings.

  • Description
  • Inquiry

PCB Vertical buffer :

The PCB Vertical buffer is used in SMT assembly line,after AOI or any other testing machine,to have the function of buffer,by pass,LIFO or FIFO;it is also with bypass ok boards,store NG boards. Storing quantity to 5pcs or 20pcs.



Technical specification:

Brand JW-HC680 PCB vertical buffer
Transport height 910+/-20mm
Transfer direction Left to Right or right to left
Operation side Front of the machine
Fixed rail Front side
Interface SMEMA COnnection
Capacity 20pcs
Lifo function available
Air supply 4~6 Bar,max. 10 liters/minute
Power supply AC220V
PCB size 50*50~350*250mm
Dimension 430*834*1150mm

Product Features:

1.The buffer conveyor is used after stencil printer or reflow oven for PCB buffer function.Can choose NG Buffer,OK pass.

2.Fifo and Lifo optional.

3.Servo motor to control lift and down position;more accurate.

4.Abnormal alarm funtion to keep easy maintainence.

5.The status of each slot can be changed independently.

6.Conveyor width adjustment using hand wheel

7.User friendly touchcreen control pane



Advantages:

1.Panasonic PLC

2.User friendly touch screen

3.SMEMA compatitable

5.Buffer 5pcs or 20pcs PCB for option



Pictures:

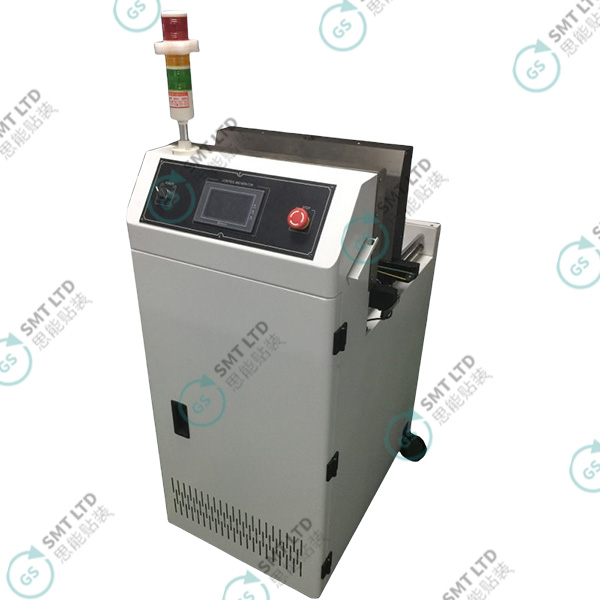

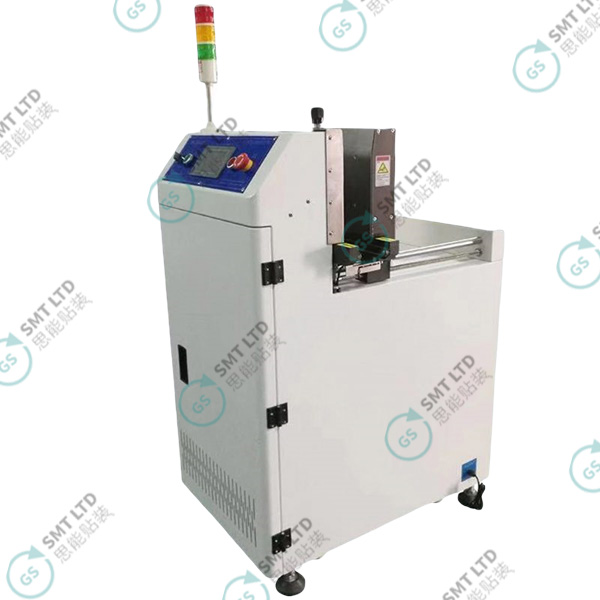

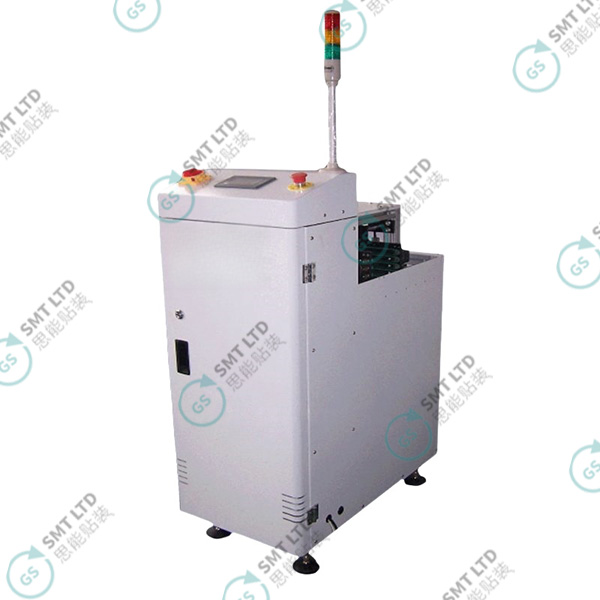

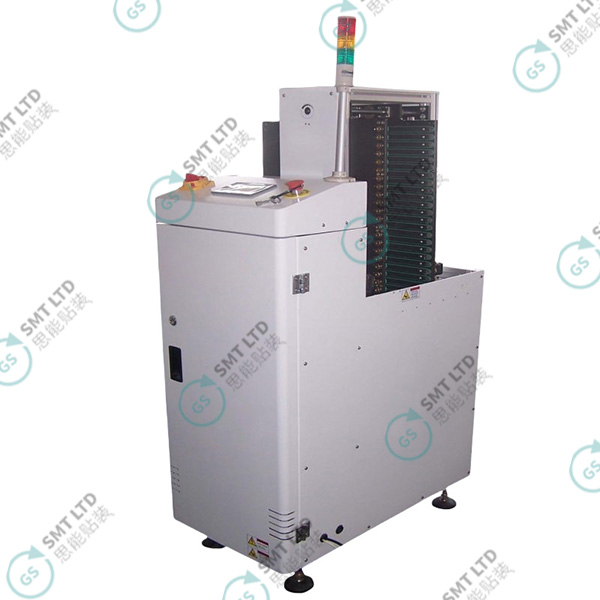

PCB vertical buffer



ShenZhen J-wide Electronics Equipment is a professional manufacturer for all kinds of SMT machines,like: PCB loader,PCB unloader,PCB Vertical buffer,PCB bare board loader,PCB turn conveyor loader,PCB turnover flipper machine and so on;We have years of experience in supporting our machines overseas with good quality and best service;welcome for enquiry all the time.
