JW-818 Semi automatic solder paste printer

JW-818 Semi automatic solder paste printer

1.Printing precision: +/- 0.5mm

2.Panasonic PLC+full color display

3.Original SMC cylinder, 5 years warranty

4.TFK motor, 3 years warranty

5.CE certified

6.Can be made to order

  • Description
  • Additional Information
  • Inquiry

Solder paste printer function:

Solder paste printer is for printing solder paste onto PCB with high accuracy and speed,it’s the start of theSMT assembly line.Different sizes for different PCB for option.


Technical Specification:

Brand Jwide
Model JW-818 printer
Outer Dimension 850*670*1550mm
Platform size 320*500mm
PCB Size 250*400mm
Template size 550*680mm
Printing speed 0~8000mm/min
PCB Thickness 0~100mm
PCB Tuning range Front/Side +10mm
Power Supply 1PAC220V 50/60HZ
Platform height 850±20mm
Repeatability ±0.01mm
Positioning mode Outsie/Reference hole
Weight Approx.270Kg

Product Features:

1.Adopt Korean made high precision roller rail and various frequency,adjustable speed motor drive scrapper to ensure printing precision.
2.Scraper can slide back and forth to choose the best printing location.
3.Scraper can rotate 45degrees upward to fix,convenient for cleaning and change.
4.Panasonic PLC  touc.h screen controller to make operation easier.
5.Fixableng printing cycles,available multi printing mode ,easy parameter setting.
6.Three working mode:automatic(machine maintainence),semi-automatic(normal operation)and manual(debugging).
7.Magnetic honeycomb fashion platform to make single/double board allocation easy and flexible.
8.Adjustable scrapper’s angle,pressure and stroke;suitable for steel scrapper and rubber scraper

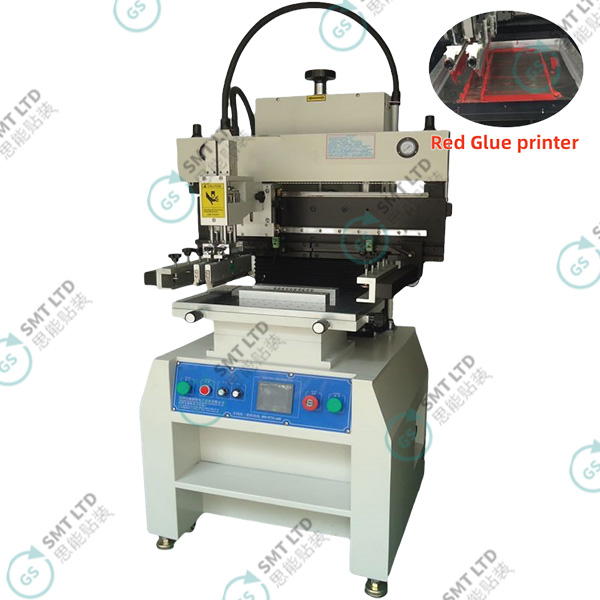

Machine picture:

solder paste printersolder paste printerProduct Details:


1.Selling overseas market for many years.

2.Semi automatic,full automatic or manual type for option.

3.Panasonic PLC+SMC Cylinder with long warranty.

4.Magnetic pin and  platform

Video link:



Company introduction:

ShenZhen J-wide Electronics Equipment Co.,Ltd was founded in 2005,
mainly specialize in selling SMT peripheralequipment,like:Solder paste printer,Solder paste mixer,
PCB Conveyor,PCB Separator,PCB Loader,SMD Chip counter,Feeder trolley,Feeder calibrator etc.
We also sell used Sony and Mirae chip mounter,Feeders and spare parts;

Additional Information

Weight 270 kg
Dimensions 96 x 81 x 173 cm
